v1.1 Public Beta Free during Public Beta

Power Integrity Analysis for KiCad.

PDN Analyzer by Elecmore visualizes voltage drop, current density, power loss and return-path behavior directly on your PCB.

Download for Windows Watch the Demo

Tested on Windows 11 & Windows 10 x64 with KiCad 10.0.6 x64

CURRENT FLOW

Follow DC current through traces, vias and planes from source to load.

VOLTAGE DROP

See rail voltage fall across real copper resistance, point by point.

CURRENT DENSITY

LOWMEDHIGH

Spot neck-downs and via clusters where current concentrates.

Product tour

See PDN Analyzer in action.

Analyze your KiCad PCB and visualize DC power distribution directly across the board.

Capabilities

DC power integrity, on your actual board.

Steady-state DC PDN analysis for PCB engineering: mesh the real copper, solve, and read the results where they happen.

VOLTAGE ANALYSIS

View rail voltage across real PCB copper geometry.

VOLTAGE DROP

Identify where resistance is causing excessive rail loss.

CURRENT DENSITY

See how current concentrates through traces, neck-downs, vias and planes.

POWER LOSS

Locate areas where resistive losses are highest.

RETURN PATH ANALYSIS

Analyze finite ground/return behavior rather than assuming an ideal ground plane.

PCB VISUALIZATION

Overlay engineering results directly on board geometry.

PROBE & LOCATE PEAK

Inspect values at individual board locations and quickly locate worst-case areas.

REPORTS & EXPORTS

Export useful engineering results — reports, CSV and PNG — for review and documentation.

Screenshots

Designed around your actual PCB.

Click a screenshot to enlarge

PDN Analyzer voltage analysis: rail voltage overlaid on the buck-boost converter PCB with source, load and probe readouts — VOLTAGE OVERLAY · PROBE 4.949252 V

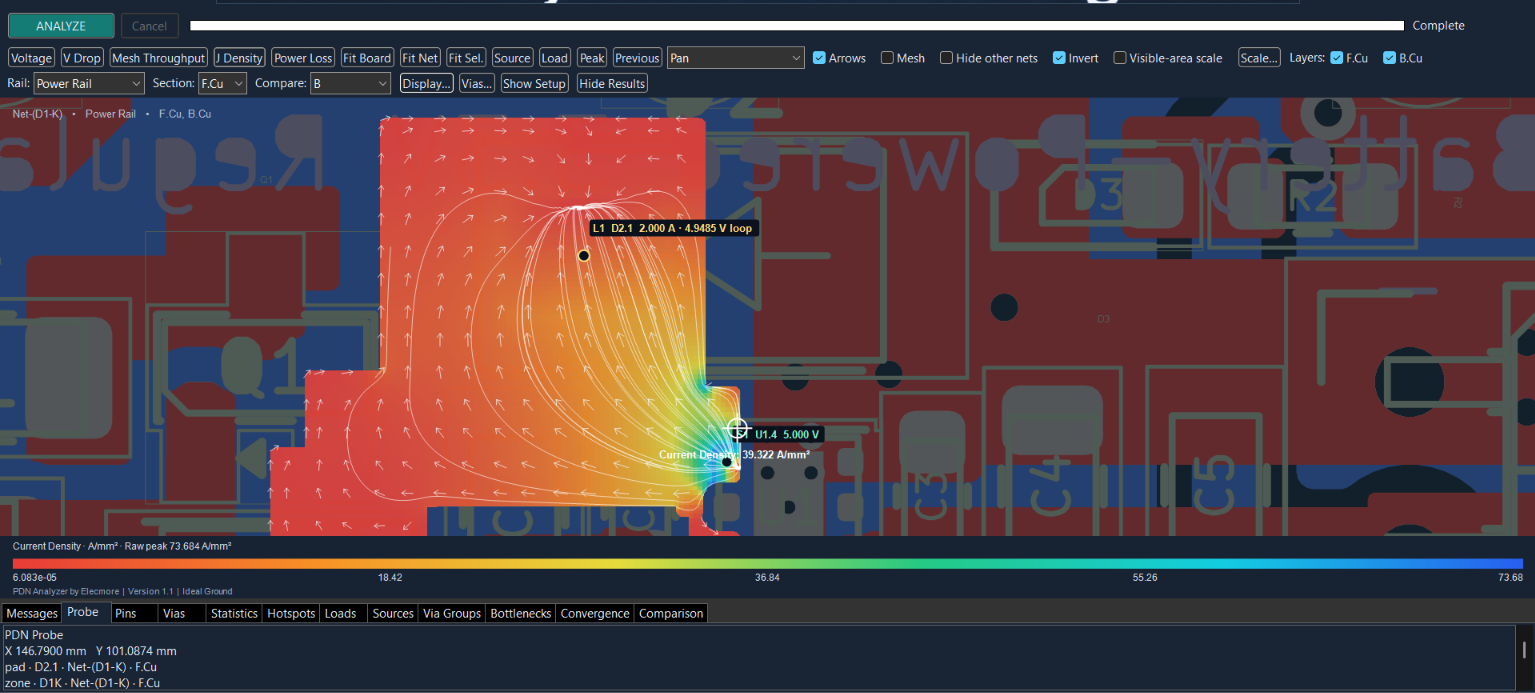

PDN Analyzer current density view: current density heat map with flow arrows across a power pour, peaking at 73.7 amps per square millimetre — J DENSITY · PEAK 73.684 A/MM²

How it works

Three steps to a result.

Open your PCB in KiCad

Open the board in the KiCad 10 PCB Editor as usual.

Launch the plugin

Tools → External Plugins → PDN Analyzer by Elecmore.

Analyze and inspect

Define sources and loads, run the analysis and inspect the results on the board.

Free Public Beta

Help shape v1.1.

PDN Analyzer v1.1 is currently available as a free Public Beta. Install it on real designs and tell us what to improve: bugs, feature requests, general feedback, or help and questions.

Inside PDN Analyzer, click the red bug icon to send feedback directly to Elecmore. Optional diagnostics start unchecked, and your PCB data stays on your computer.

Download

PDN Analyzer by Elecmore

v1.1.0 Public Beta · Windows 11 & Windows 10 x64 · Tested with KiCad 10.0.6 x64

Windows 11

PDN Analyzer v1.1 for Windows 11

Tested on Windows 11 x64 with KiCad 10.0.6 x64

Download for Windows 11

INSTALLER · 40.2 MB · WINDOWS 11 X64 · KICAD 10

Verify Download

The installer is not yet signed with a Windows Authenticode certificate. Download only from this page and check the SHA-256 of the file you receive:

45154597edf4234da4f7a87615733286aec939a12f0be7eb9b51389be5073ef9

SHA-256 · PDN-Analyzer-by-Elecmore-1.1.0-Setup.exe · all checksums

Windows 10

PDN Analyzer v1.1 for Windows 10

Tested on Windows 10 x64 with KiCad 10.0.6 x64

Download Windows 10 Installer Download Windows 10 ZIP

INSTALLER · 40.2 MB · WINDOWS 10 X64 · KICAD 10 | ZIP · 46.3 MB

Verify Download

The installer is not yet signed with a Windows Authenticode certificate. Download only from this page and check the SHA-256 of the file you receive:

86b5f8ea393be9d3379852ee40c0711a15cbf12ed3f6e1bcd1ac27c01a189f8c

SHA-256 · PDN-Analyzer-by-Elecmore-1.1.0-Windows10-Setup.exe

Release Information

Release Notes Installation Guide System Requirements EULA Privacy Policy Third-Party Notices SHA-256 Checksums GEOS LGPL Source

Help us improve PDN Analyzer. Found a bug, have a feature request, or need help? Inside PDN Analyzer, click the red bug icon and send your feedback directly to Elecmore.
